Product Overview

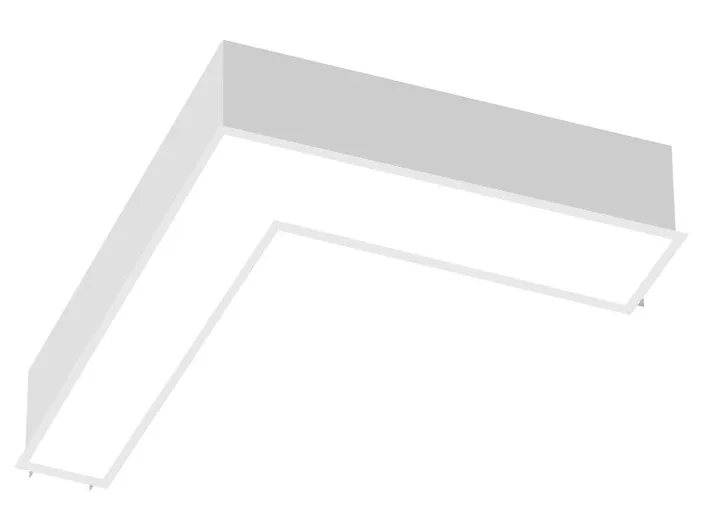

Engineered for retail and office fit-outs, the EnVision LED-ALIN2-12X12-L-3P25-D-5CCT-WH-RTK downlight provides up to 2,400 lumens with selectable 20/15/10w output across a 120-277V range, pairing verified performance with fast field specification.
Key Features
- Selectable power: 20/15/10w set at install, one SKU covering multiple loads
- Output: up to 2,400 lumens matching the selected wattage
- Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 110° for even coverage
- Color rendering: CRI>80
- Rating: Dry Location
- Finish: White
- Compliance: ETL Listed, 5-year warranty
- Packaged 4 per box
Technical Specifications
| Brand | EnVision |
|---|---|
| Wattage | 20/15/10w |
| Lumens | 2,400/1,800/1,200 |
| Color Temperature | 2700K-5000K (5 CCT) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Beam Angle | 110° |
| CRI | >80 |
| IP Rating | Dry Location |
| Finish | White |
| Certification | ETL/ 5 Years |
| Box Quantity | 4 |
| UPC | LED-ALIN2-12X12-L-3P25-D-5CCT-WH-RTK |
Applications
Suited to retail and office fit-outs, hospitality and residential ceilings, and corridors and common areas.
Compatibility & Installation Notes
Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting.
Choose the LED-ALIN2-12X12-L-3P25-D-5CCT-WH-RTK when a project needs dependable output with minimal spec overhead.
