Product Overview

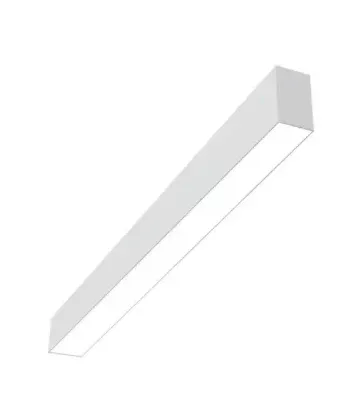

EnVision’s LED-ALIN2-4FT-3P50-D-5CCT-WH downlight supplies up to 4,800 lumens with selectable 40/30/20w output on universal 120-277V, suited to corridors and common areas with straightforward install and confirmation.
Key Features
- Selectable power: 40/30/20w set at install, one SKU covering multiple loads
- Output: up to 4,800 lumens matching the selected wattage
- Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 110° for even coverage
- Color rendering: CRI>80
- Rating: Dry Location
- Finish: White
- Compliance: ETL Listed, 5-year warranty
- Packaged 6 per box
Technical Specifications
| Brand | EnVision |
|---|---|
| Wattage | 40/30/20w |
| Lumens | 4,800/3,600/2,400 |
| Color Temperature | 2700K-5000K (5 CCT) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Beam Angle | 110° |
| CRI | >80 |
| IP Rating | Dry Location |
| Finish | White |
| Certification | ETL/ 5 Years |
| Box Quantity | 6 |
| UPC | 810143710106 |
Applications
Suited to corridors and common areas, recessed ceiling layouts, and retail and office fit-outs.
Compatibility & Installation Notes
Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting.
Order the LED-ALIN2-4FT-3P50-D-5CCT-WH to standardize on one flexible fixture across the job.
