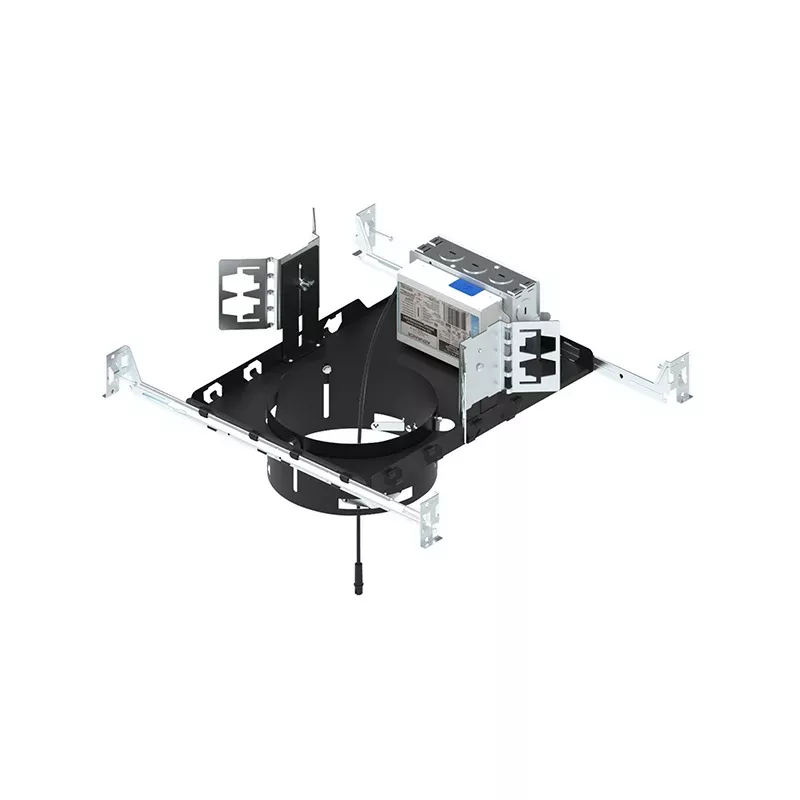

New Construction Frame-In for 4″ Sapphire III COB LED downlights includes universal brackets and bar hangers that can be adjusted on either side of the flat frame.
Features
- Trim sold separately
- Wattage: 38W
- Voltage: 120V
- Lumens: 3500
- Dimming Option: Phase Dimming (Triac/ELV), 0-10V Dimming
- Optional emergency driver with remote test switch
- Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2″ conduit
- Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame
- Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2″ to 2″
- Minimum Clearances: Frames require a minimum of 3″ from thermal insulation and 1/2″ from adjacent building component
Dimensions
- Length: 12.13″
- Width: 7.63″
- Height: 6.75″ max
- Cut-out: 5″
Documents
- Spec Sheet
- Instruction Sheet
