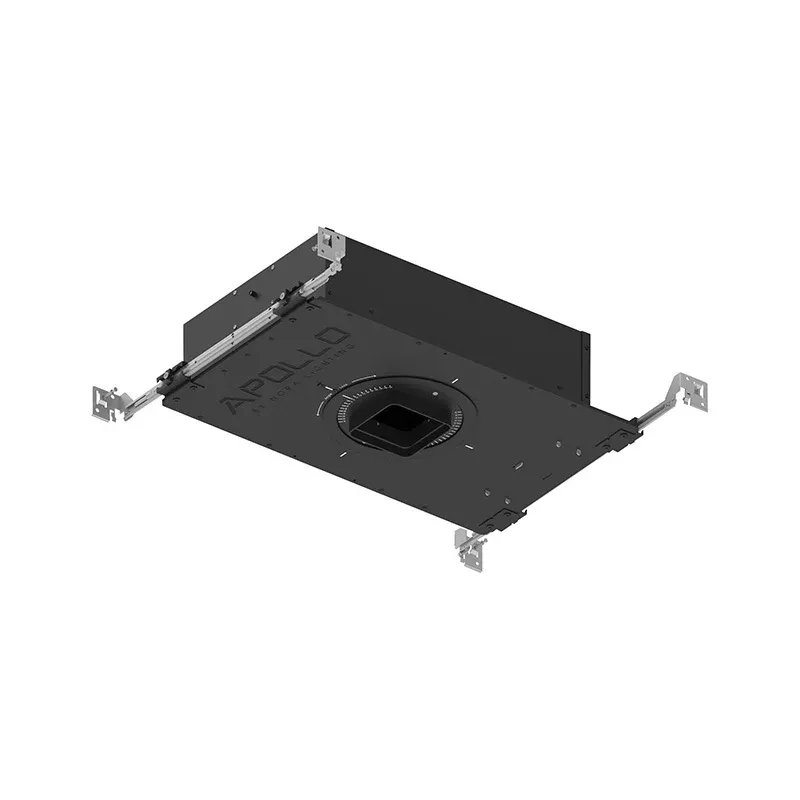

3″ Apollo IC Air-tight new construction housing for use with 3″ Apollo flanged and flangeless trims. Shallow 4-1/8″ housing includes the adjustable LED mechanism and reinforced bar hangers. A detachable roof allows for serviceability from below and above the ceiling.
Features
- Housing only. Trim sold separately.
- Wattage: 20W
- Voltage: 120-277V
- Color Temperature: 2700K, 3000K, 3500K, 4000K
- Lumens: 2000
- CRI: 90+
- Beam Spread: Spot (26°), Narrow Flood (38°), Flood (55°)
- Dimming: 0-10V
Dimensions
- Ceiling Thickness: 1.25″ to 1.625″
- Length: 17.13″
- Width: 10.75″
- Height: 4.13″
- Ceiling Cut-Out: 3.38″
Documents
- Spec Sheet
- Instruction Sheet
